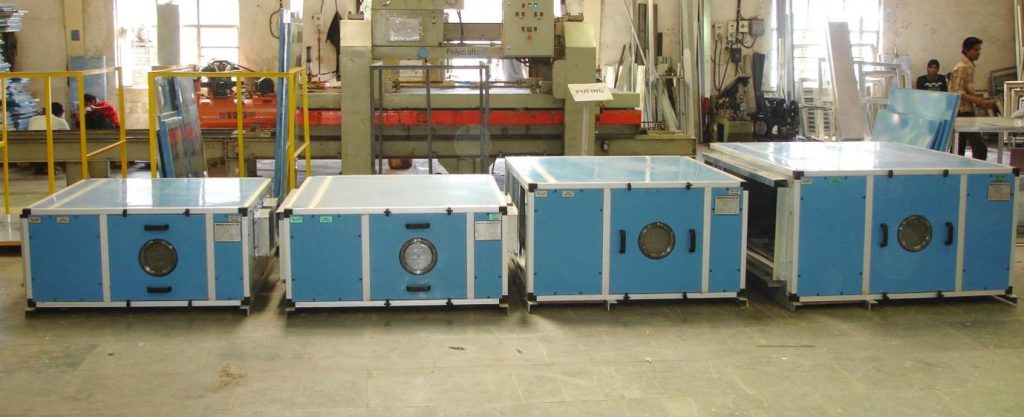

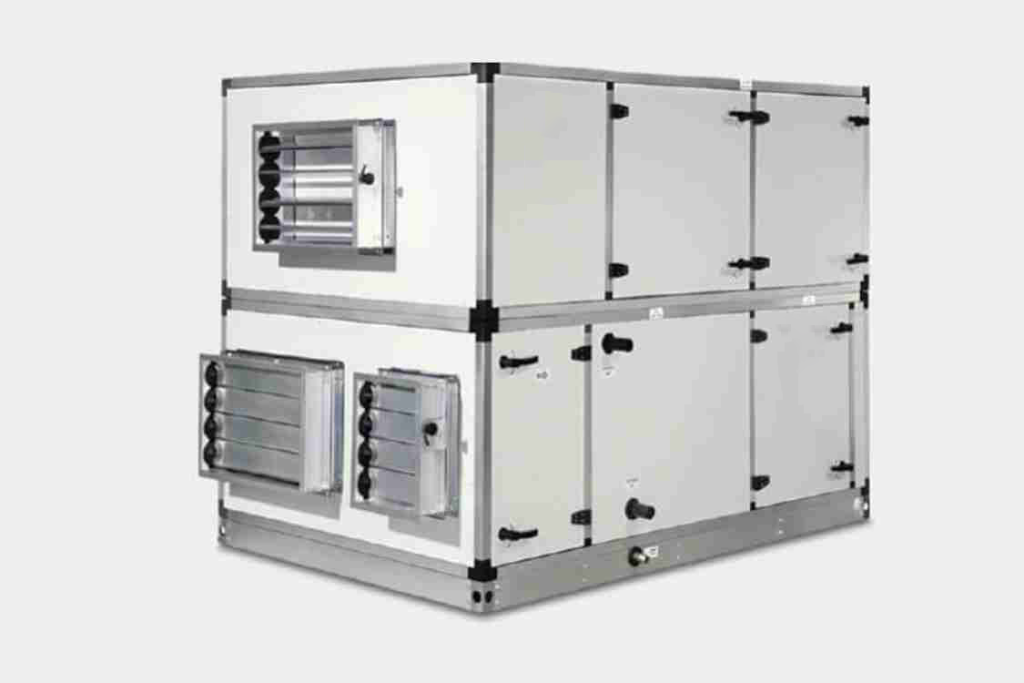

Air Handling Units

Home › Air Handling Units

Specification

Description	Specification
Capacity	500 to 65,000 CFM in Horizontal/Vertical Floor and Ceiling Suspended Units
Framework	Hollow Extruded Aluminum Profiles (with thermal break and internal coving)˜
Blowers	Forward/Backward Plug type/EC Fans
Evaporator Coil	Copper tubes with Aluminium fins (Anti-microbial coating available)
Filtration	Pre/Fine/Carbon/HEPA Filtration (EU 7/9/13)
Panel Construction	Double/Single Skin GI Pre-coated/Powder Coated/SS filled with insulation
Insulation	Poly-Urethane Foam (PUF) (up to 40 kg/m³)/High Density Rockwool
Panel	25mm Thermal and Non-Thermal Break 45mm Thermal and Non-Thermal Break
View Panels	Provided as per details specified
Vibration Isolators	Blower Mechanics mounted on Rubber Isolators of performance
Energy Recovery Unit	More than 75% recovery from exhaust (BryAir)
Silent Air	Sound Attenuation for low-noise Applications
UVC Stage	Improving the IAQ with UV A/B/C (380 – 315/315 – 280/280 -100 nm)
Smart AHU	Monitoring and control of parameters including VFD for fans
Accessories	Access Door with hinges, handles and doorknobs; Polycarbonate View-glass; Pressure ports; DOP Ports, Access Door with hinges, handles and doorknobs; Polycarbonate View-glass; Pressure ports; DOP Ports
