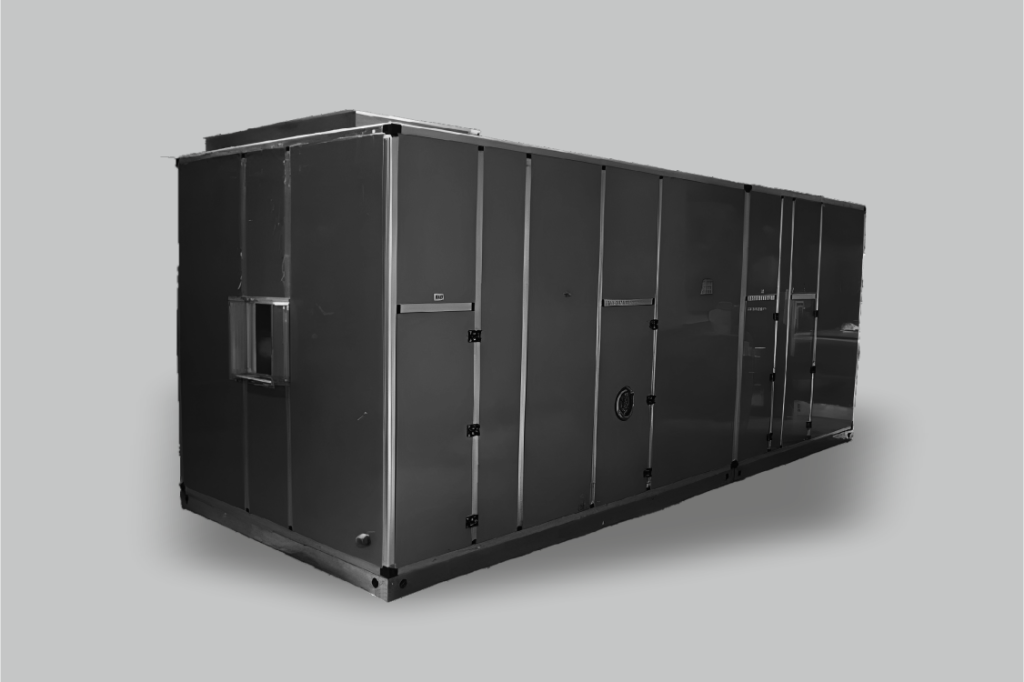

Air Handling Equipment

Home › Air Handling Equipment

Specification

Capacity	1,000 to 65,000 CFM˜
Configuration	Horizontal Floor/Vertical Floor/Ceiling Suspended Units˜
Framework	Hollow Extruded Aluminum Profiles (with thermal break and internal coving)˜
Blowers	Centrifugal Blowers (Pulley Driven/Plug Type)˜
Evaporator Coil	Staggered copper tubes with tightly bound corrugated aluminum fins
Filtration	Pre/Fine/Carbon/HEPA Filtration (EU 7/9/13)
Sandwich Type	Double/Single Skin GI Pre-coated/Powder Coated filled with insulation˜
Insulation	Poly-Urethane Foam (PUF) (up to 40 kg/m³)˜/High Density Mineral wool˜
Panel	25 mm Non-Thermal Break
Thickness	45 mm With Thermal Break
Drain Tray	Multi-slope (Material of Choice)(Desired Thickness)˜
View Panels	Provided as per details specified˜
Vibration Isolators	Blower Mechanics mounted on Spring and Rubber Isolators of performance˜
Energy Recovery Unit	More than 75% recovery from exhaust (BryAir)˜
Silent Air	Sound Attenuation for low-noise Applications˜
UVC Stage	Improving the IAQ with UV A/B/C (380 – 315/315 – 280/280 -100 nm)˜
Accessories	Access Door with hinges, handles and door knobs; Polycarbonate View-glass; Pressure ports; DOP Ports, Access Door with hinges, handles and door knobs; Polycarbonate View-glass; Pressure ports; DOP Ports

˜ Respected virtues customizable for user requirements
